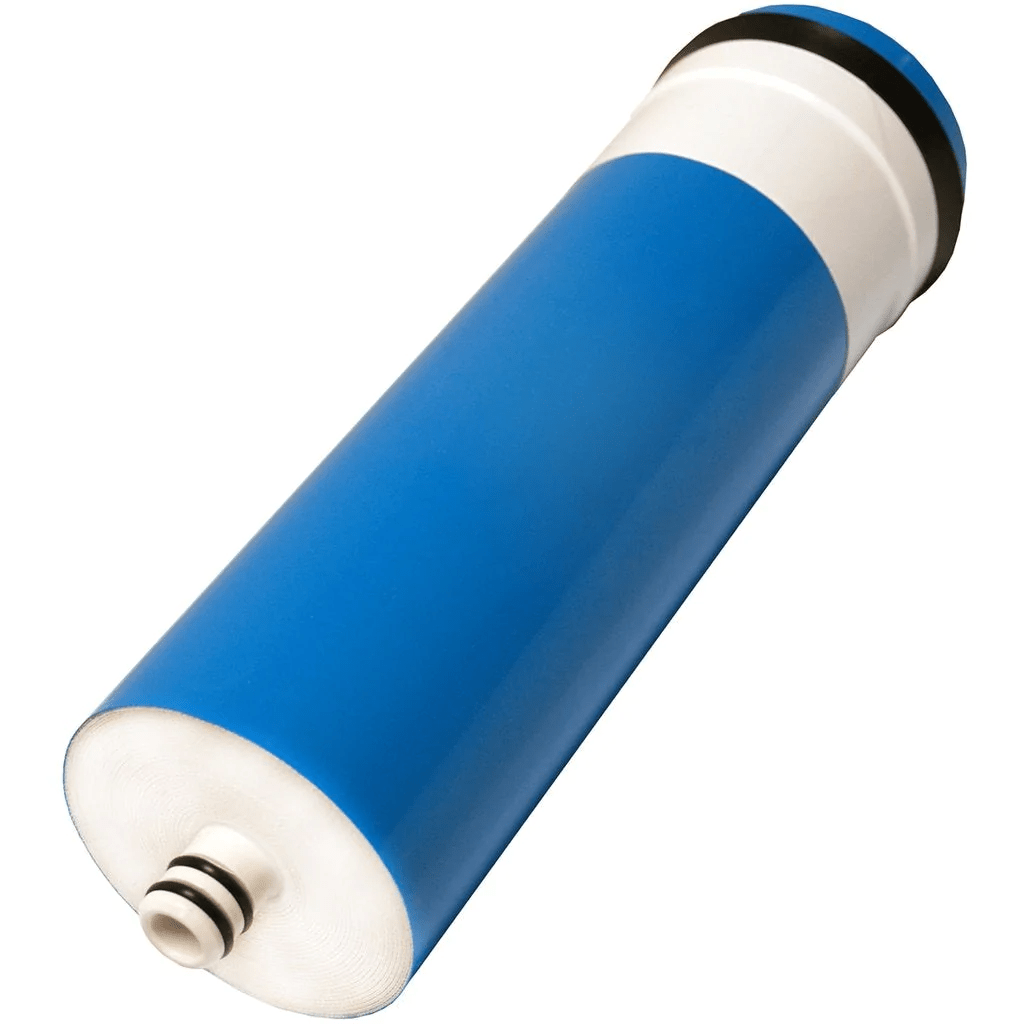

AXEON TE-3012-500 NSF-58 Residential Membrane 500 GPD

AXEON TE–Series Reverse Osmosis Membrane Elements are a reliable alternative for your residential reverse osmosis system needs.

TE–Series Membrane Elements are NSF-58 Certified and are manufactured in a state-of-the-art, ISO-9001 compliant automated rolling facility, providing you with precise and advanced membrane quality that delivers on performance and cost.

Features:

• 500 Gallons Per Day
• Operates as low as 70 psi
• TFC (Thin Film Composite) Membrane is for use with non-chlorinated water
• Individually vacuum tested and sanitized
• NSF-58 Certified

Specifications:

• Description: TE-3012-500
• Applied Pressure (psi / bar): 70 / 4.83
• Permeate Flow Rate (gpd / lpd): 500 / 1892.72
• Nominal Salt Rejection %: 98

Dimensions (Inches)

A: 11.73
B: 0.85
C: 0.68
D: 2.76
E: 10.04

Operating Limits:

• Membrane Type: Polyamide Thin-Film Composite
• Maximum Operating Temperature (°F / °C): 113 / 45
• Maximum Operating Pressure (psi / bar): 300 / 20
• Maximum Feed Flow Rate (gpm / lpm): 2.5 / 9.50
• pH Range, Continuous Operaiton: 2 - 11
• Maximum Feed Silt Density Index (SDI): 5
• Chlorine / Chloramine Tolerance (ppm): 0
