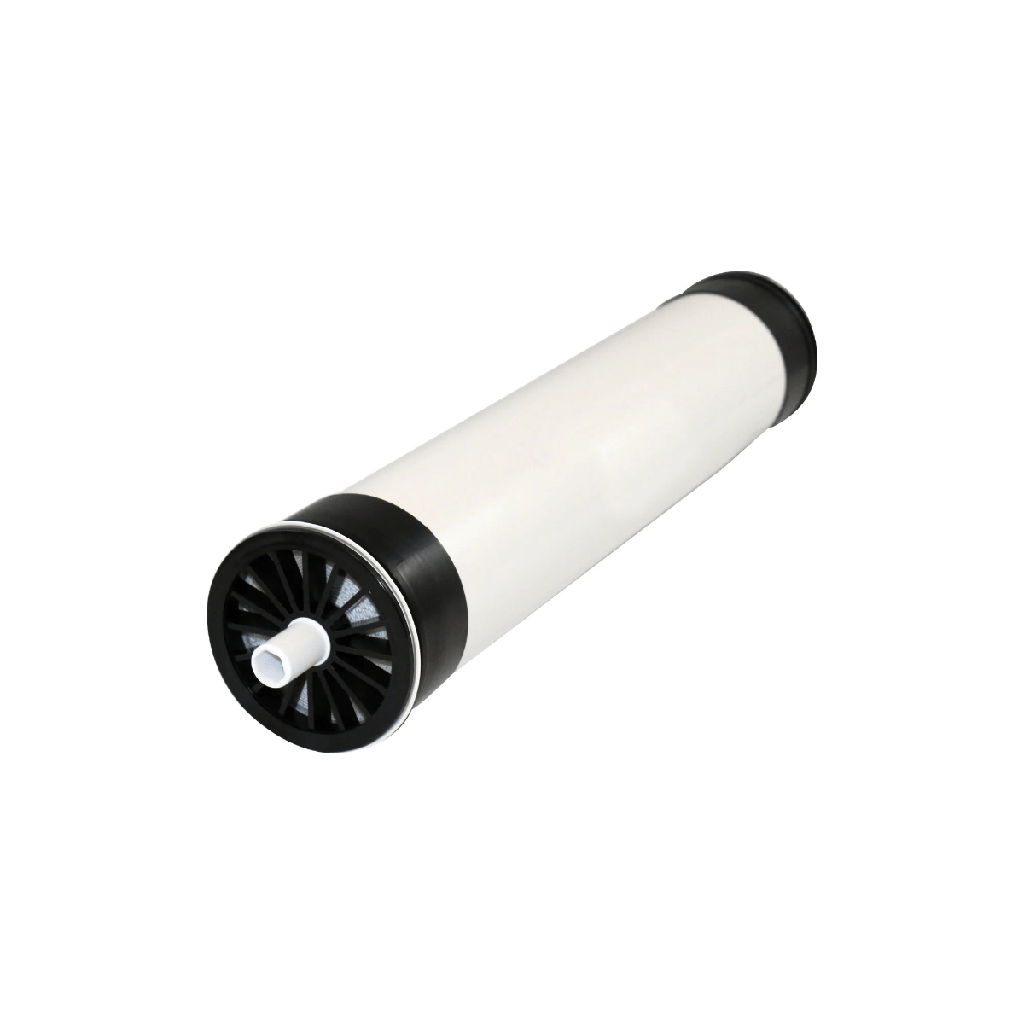

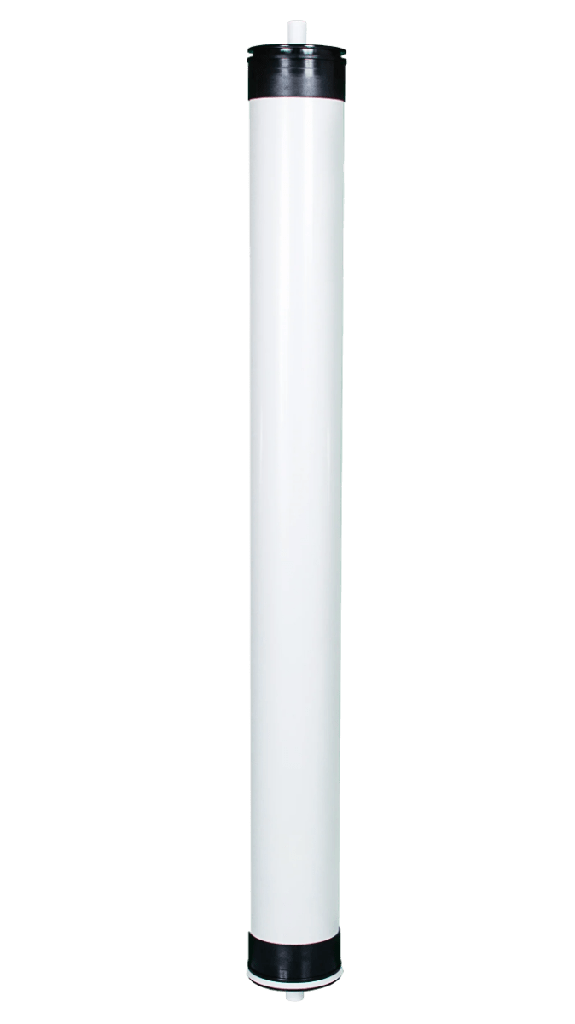

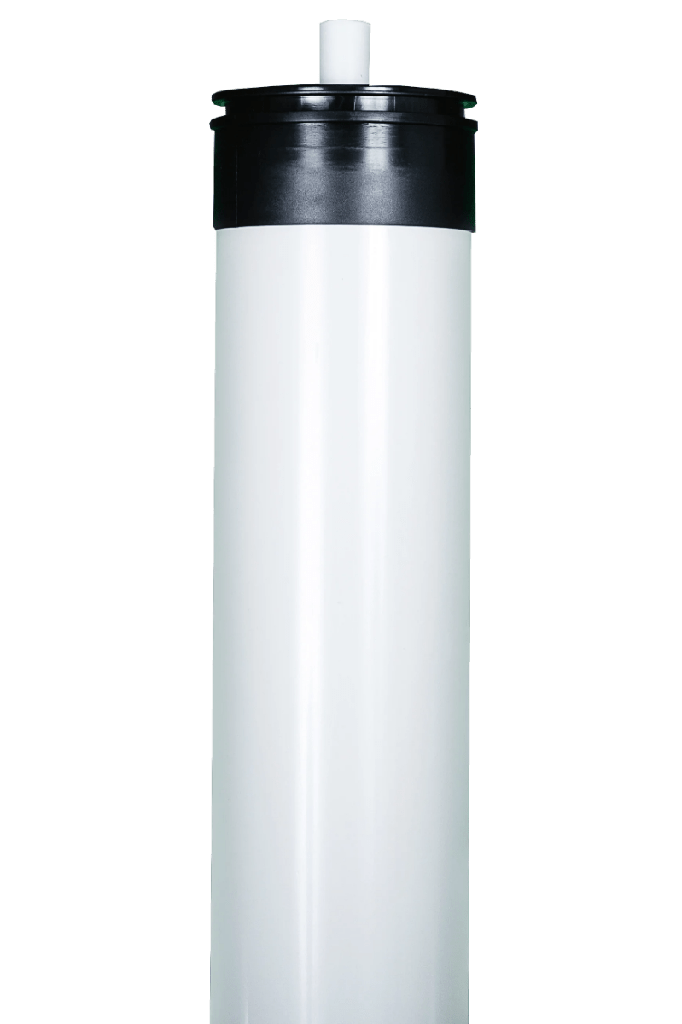

AXEON® HF4–Series Reverse Osmosis Membrane Elements operate at extra-low pressures of only 100 psi, while producing a nominal salt rejection rate of 99% and reaching flow rates up to 2,500 gallons per day. Protected with a hard ABS shell for improved structural integrity, HF4–Series RO Membranes are the upgraded choice for extra-low energy savings and for reducing costs and applying less stress on RO system fittings and components.
Features:
- Extra Low Energy
- High Flow Capacities
- Improved System Performance
- Superior Quality and Cost Savings
- Individually Vacuum Tested
- Made in the U.S.A.
Specifications:
-
Description: HF4-4021
-
Applied Pressure (psi / bar): 100 / 6.89
-
Permeate Flow Rate (gpd / m³/d): 1000 / 3.79
-
Nominal Salt Rejection %: 99
Dimensions (Inches)
A: 21
B: 1.10
C: 0.75
D: 3.95
Operating Limits:
-
Membrane Type: Polyamide Thin-Film Composite
-
Maximum Operating Temperature (°F / °C): 113 / 45
-
Maximum Operating Pressure (psi / bar): 600 / 41
-
pH Range, Continuous Operation: 2 - 11
-
pH Range, Short Term Cleaning (30 Min.): 1 - 13
-
Maximum Feed Silt Density Index (SDI): 5
-
Chlorine / Chloramine Tolerance (ppm): 0
-
Maximum Feed Flow Rate (gpm): 14
Compatible with:
| Desal Membranes: |
AK4021TF, 1206812 |
| Filmtec Membranes: |
XLE-4021 |
