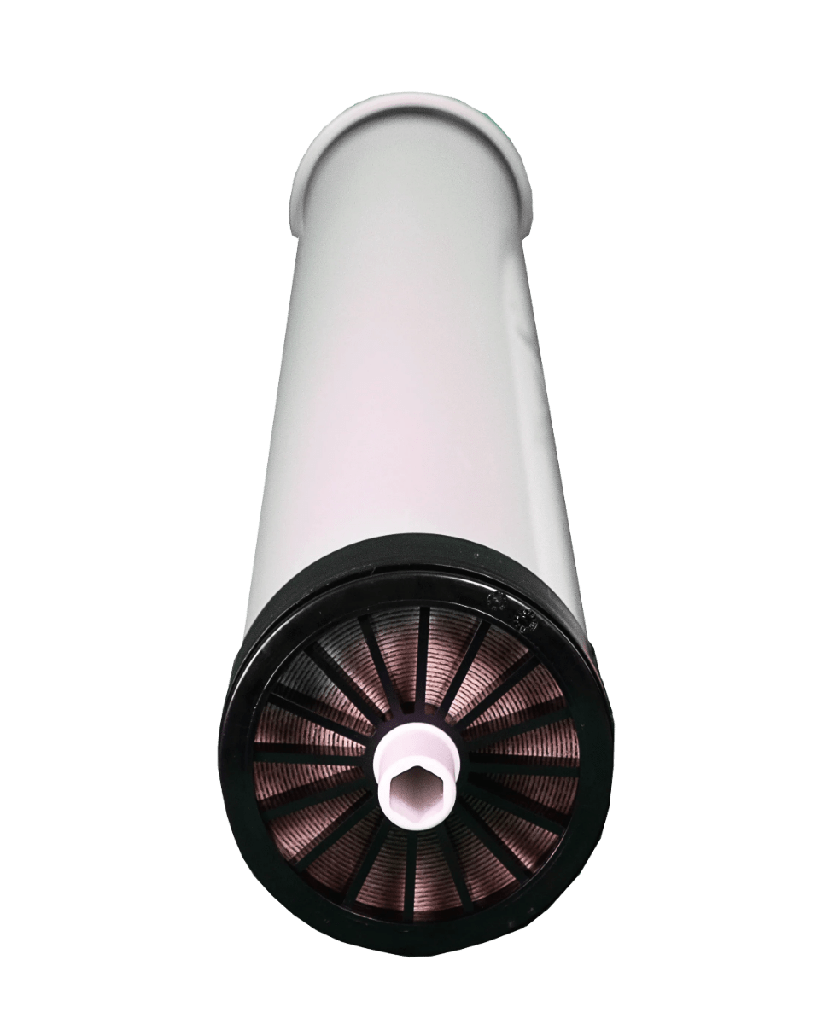

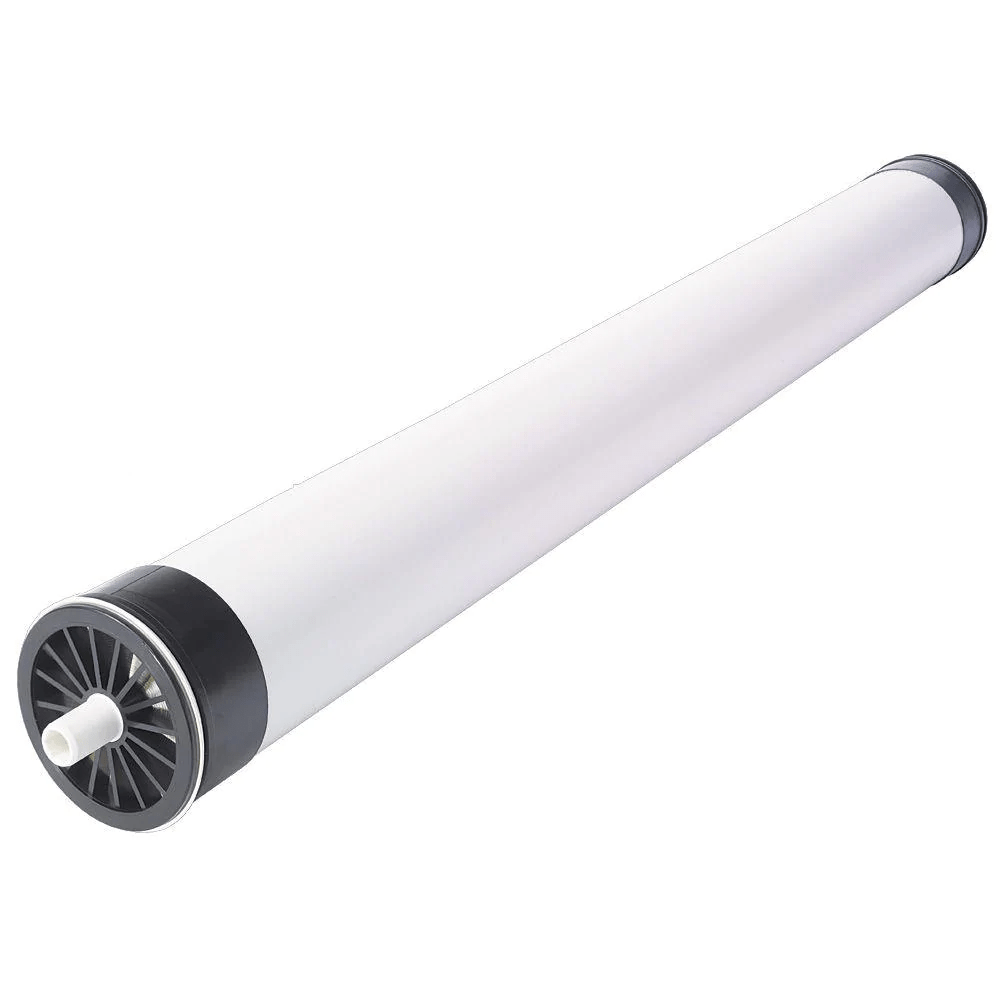

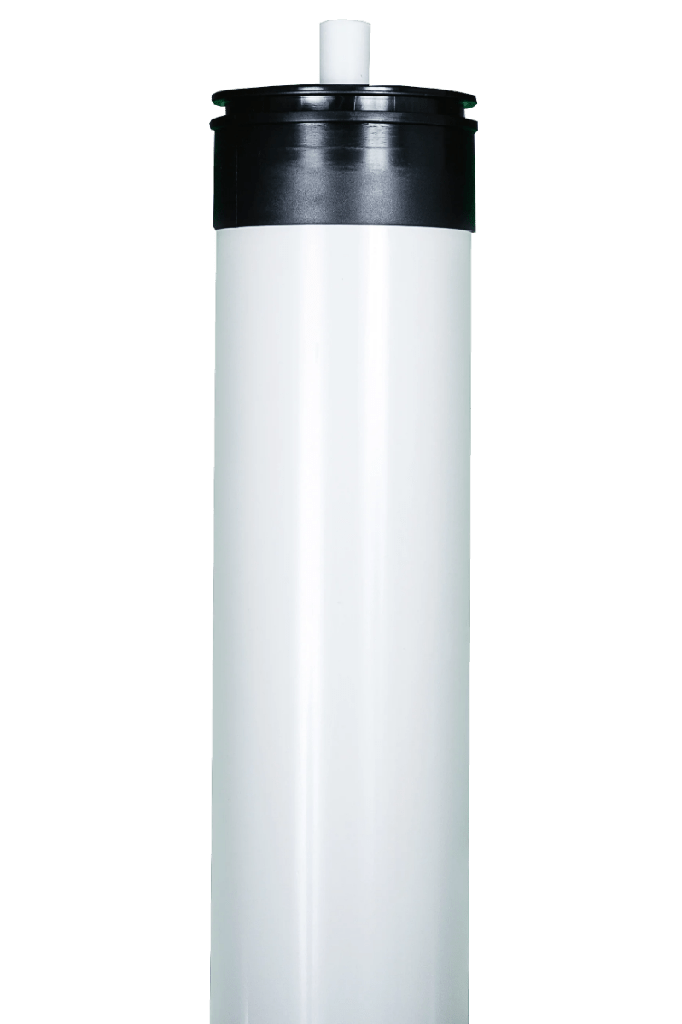

AXEON HR3-4040 Reverse Osmosis Membrane

HR3–Series Reverse Osmosis Membrane Elements offer the highest salt rejection rates at 99.5% and up to 2,200 gallons per day. Protected with a hard ABS shell, HR3–Series RO Membranes continue to be a top choice amongst equipment operators for high salinity applications. With an operating pressure of 225 psi, HR3–Series RO Membranes are ideal for municipal water or deionization feed applications.

Features:

• Superior Quality and Cost Savings
• Individually Inspected, Qualified and Vacuum Tested
• All Industry Standard Sizes
• High Rejection of Salts
• Improved RO System Performance

Specifications:

• Description: HR3-4040
• Applied Pressure (psi / bar): 225 / 15.51
• Permeate Flow Rate (gpd / m³/d): 2200 / 8.33
• Nominal Salt Rejection %: 99.5

Dimensions (Inches)

A: 40
B: 1.1
C: 0.75
D: 3.95

Operating Limits:

• Membrane Type: Polyamide Thin-Film Composite
• Maximum Operating Temperature (°F / °C): 113 / 45
• Maximum Operating Pressure (psi / bar): 600 / 41
• pH Range, Continuous Operation: 2 - 11
• pH Range, Short Term Cleaning (30 Min.): 1 - 13
• Maximum Feed Silt Density Index (SDI): 5
• Chlorine / Chloramine Tolerance (ppm): 0
• Maximum Feed Flow Rate (gpm): 14
